What is an Inner Tube? A Complete Guide to Function, Types, & Maintenance

Inner tubes remain essential components for many vehicles and recreational equipment, despite the widespread adoption of tubeless technology in modern automobiles. These inflatable rubber rings provide cushioning and support for bicycles, motorcycles, wheelbarrows, and various other applications where reliable air retention matters most.

Understanding inner tubes helps vehicle owners make informed decisions about maintenance, repairs, and replacements for their equipment. From material composition to valve types, each aspect of inner tube design serves a specific purpose that affects performance and durability.

The evolution of inner tube technology has introduced new materials and designs that offer improved puncture resistance, weight savings, and ease of installation. Whether you need a replacement for your mountain bike or want to understand how these components work, knowing the fundamentals makes selection and maintenance straightforward.

What Is an Inner Tube?

Definition and Basic Function

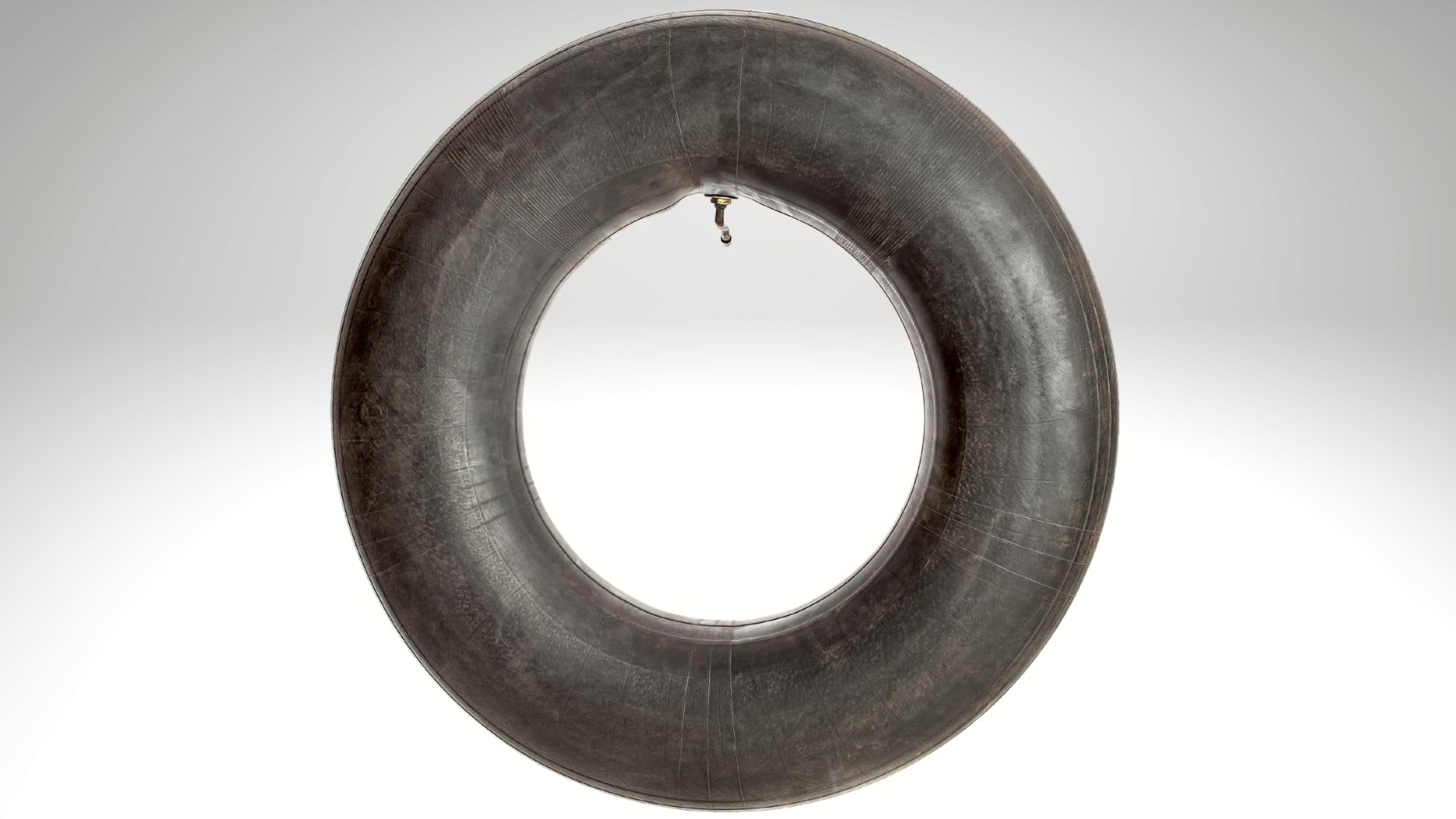

An inner tube is a doughnut-shaped inflatable component made primarily of synthetic rubber that fits inside certain types of tires. This torus-shaped device creates an airtight chamber between the wheel rim and the outer tire casing, holding compressed air that provides the cushioning effect necessary for smooth operation. The tube maintains tire shape while absorbing shocks and vibrations from the road or trail surface.

The basic design has remained largely unchanged since its invention in the 1800s: a continuous rubber ring with a valve stem for inflation. When properly inflated, the inner tube pushes outward against the tire casing, creating the firm yet flexible structure that allows wheels to roll efficiently while providing comfort and traction.

Key Components

Every inner tube consists of several critical elements that work together to maintain proper function. The main body forms from vulcanized rubber — typically butyl rubber for standard applications — molded into a seamless ring. This material choice balances durability, air retention, and cost-effectiveness for most users.

The valve stem represents the most complex component, featuring:

• Metal or rubber construction: Provides a secure connection point for pumps and pressure gauges
• Threaded design: Allows attachment of valve caps and pump heads
• Internal valve core: Contains the actual sealing mechanism that prevents air escape
• Reinforced base: Extra rubber thickness around the valve prevents tearing during installation

Material thickness varies throughout the tube based on application requirements. Standard bicycle tubes measure 0.9mm to 1.5mm thick, while heavy-duty versions reach 2.5mm or more. Motorcycle and utility vehicle tubes feature even greater thickness to handle increased loads and pressures. The rubber compound itself may include additives for UV resistance, improved elasticity, or self-sealing properties in specialized models.

What Are Inner Tubes Used For?

Common Applications

Inner tubes are widely used in bicycles, where they play a crucial role in maintaining tire shape and ensuring a comfortable ride. Cyclists appreciate tubes for their straightforward design and the ability to make quick repairs during rides. With a simple patch or replacement, riders can quickly address punctures and get back on their way.

Off-road motorcycles often incorporate inner tubes to handle the demands of rugged terrain. These tubes provide the necessary flexibility and shock absorption required for challenging conditions. Additionally, wheelbarrows and hand trucks benefit from inner tubes, which help manage heavy loads by reducing wheel strain and improving maneuverability. Inner tubes also serve as the core of recreational floating devices, offering buoyancy and stability for water activities. In some cases, lawn equipment and small utility vehicles use inner tubes, providing an effective solution for diverse operational needs.

Modern vs. Traditional Uses

Historically, inner tubes were commonplace in car tires until tubeless technology became standard in the 1970s, offering improved reliability and reduced maintenance. Heavy-duty trucks also shifted to tubeless designs, which enhanced performance under the demands of commercial transportation. Despite these changes, bicycles continue to favor inner tubes for their cost-effectiveness and ease of roadside repairs. The introduction of self-sealing and puncture-resistant tubes has further enhanced their practicality and appeal. While tubeless systems gain traction in specific sectors, traditional inner tubes remain a reliable choice across various applications.

What Are the Different Types and Sizes of Inner Tubes?

Material Options

Inner tubes are crafted from various materials, each tailored to specific performance requirements. Synthetic rubber, notably butyl rubber, is widely used due to its balance of cost-effectiveness and air retention. Natural alternatives such as latex offer superior elasticity, preferred by cyclists seeking a smoother ride. For cutting-edge performance, thermoplastic polyurethane (TPU) is recognized for its lightweight nature and resilience against punctures, although it comes at a premium.

Size Classifications

Inner tubes come in a range of sizes to match different tire specifications. These include both diameter and width measurements to ensure a proper fit within tire casings. For mountain bikes, standard diameters include 26", 27.5", and 29", with widths typically spanning from 1.75 to 2.125 inches. Additionally, valve lengths vary from 33mm to 80mm, ensuring compatibility with different rim depths. Load ratings guide users in selecting tubes that can handle specific vehicle weights, ensuring reliability under various conditions.

Valve Types

The functionality of inner tubes is further defined by the type of valve used. Schrader valves, known for their sturdy build, are common in a variety of vehicles due to their user-friendly design. Presta valves, with their slender form, cater to bikes requiring higher pressure retention. Although rarer, Dunlop valves offer unique compatibility for select rims. Angled valves provide specialized solutions for non-standard rim designs, enhancing accessibility and usability for diverse applications.

How Do Inner Tubes Work?

Basic Operation

Inner tubes serve by encasing pressurized air, forming a crucial layer that supports the tire and rim. As air is pumped into the tube, it expands to fit snugly against the tire's interior, ensuring that the tire maintains its shape and adheres to the road or trail surface. This cushioning effect not only supports the load but also helps mitigate the impact from rough terrain, contributing to a more comfortable ride.

The valve stem functions as the gateway for air entry and exit, facilitating precise control over the tube's inflation level. This component is designed to allow for easy adjustments, enabling users to tailor the air pressure to match specific riding conditions or personal preference, enhancing the overall performance of the vehicle.

Pressure and Performance

The amount of air pressure within an inner tube directly affects its performance characteristics. For instance, a higher pressure setting reduces rolling resistance, favoring speed and efficiency on smooth surfaces. However, this may result in a stiffer ride, which can be less comfortable over long distances. Lower pressure settings offer increased grip and shock absorption, which are beneficial in off-road scenarios, though they may cause quicker wear on the tire and tube.

Understanding the correct pressure range for your specific application is crucial, as it varies based on factors such as tube size, tire specifications, and terrain conditions. Regularly checking and maintaining the proper pressure helps extend the life of both the tire and tube, while also preventing issues like pinch flats, ensuring reliable performance and safety.

What Are the Advantages and Limitations?

Benefits of Inner Tubes

Inner tubes deliver distinct advantages, making them a practical choice for many users. One major benefit is their straightforward repair process. When minor punctures occur, they can be swiftly fixed using a patch kit, enabling quick resumption of activity without major interruptions. This simplicity makes inner tubes a preferred option for those who rely on easy maintenance and reliability.

Affordability is a key aspect of inner tubes, as they typically present a lower upfront cost compared to tubeless systems. This economical advantage extends to maintenance and replacement, as they neither demand specialized rims nor sealants. Their compatibility with a broad range of bikes and equipment ensures widespread availability at most retailers. The ability to perform swift roadside replacements enhances their convenience, offering reassurance to users who value ease of use and accessibility.

Drawbacks to Consider

Inner tubes, while beneficial, also have limitations that should be acknowledged. One prevalent issue is their vulnerability to pinch flats, especially when operating at suboptimal pressure levels. This happens when the tube gets trapped between the tire and rim, leading to punctures that can result in abrupt deflation. Moreover, inner tubes contribute additional weight to the setup, which may be a consideration for performance-driven applications where weight reduction is pivotal.

The interaction between the inner tube and tire can lead to reduced efficiency due to friction. This friction might cause the tube to shift within the tire, potentially resulting in valve misalignment or performance inconsistencies. Furthermore, while inner tubes offer cushioning and support, they remain susceptible to sudden deflation if punctured, posing a risk of rapid air loss that could compromise handling and safety. Recognizing these drawbacks equips users with the knowledge to decide if inner tubes align with their specific needs and conditions.

How Do I Choose the Right Inner Tube?

Matching Tube to Tire

Choosing the right inner tube starts with understanding your tire's specific needs. Begin by locating the tire's size information, typically embossed on the sidewall, which provides both diameter and width. This ensures that the tube fits snugly within the tire, maintaining optimal performance and reducing the risk of damage. Properly matching the tube's diameter and width with the tire’s specifications is essential for maintaining structural integrity and preventing air loss.

Valve type is another critical consideration—different rims accommodate specific valve designs. For instance, Presta valves are often found on road bikes for their slender profile, while Schrader valves are more common on mountain and hybrid bikes due to their robustness. Ensuring that the valve type aligns with your rim design facilitates hassle-free inflation and air retention.

Special Considerations

Inner tubes come in various formulations to meet diverse riding conditions and preferences. If you encounter rugged landscapes frequently, heavy-duty tubes offer reinforced walls for superior puncture protection. Conversely, lightweight tubes cater to competitive cyclists who prioritize speed and agility, offering less weight for improved performance.

For those seeking convenience, self-sealing tubes contain a sealant that automatically addresses small punctures, minimizing downtime for repairs. Thorn-resistant tubes, featuring thickened rubber layers, provide an extra layer of defense against sharp debris on challenging routes. Choosing the appropriate tube type based on these considerations ensures your ride remains smooth and uninterrupted, regardless of the terrain.

Quality Indicators

High-quality inner tubes are distinguished by several key characteristics. Look for consistent wall thickness throughout the tube, as any variation can lead to weak spots that compromise durability. The valve should be securely attached and free from defects, indicative of meticulous manufacturing standards. Opt for tubes from well-regarded manufacturers known for their reliability and innovation in design. Proper packaging is vital to prevent degradation before installation, ensuring the tube retains its integrity. Additionally, check for date stamps on the packaging to confirm the tube’s freshness, as older products may have deteriorated over time. By focusing on these quality indicators, you can select an inner tube that offers dependable performance and a longer lifespan.

How Do I Install and Maintain Inner Tubes?

Installation Steps

Installing an inner tube correctly ensures dependable performance and reduces the risk of damage. Start by removing the wheel from the vehicle, ensuring a stable work environment. Completely deflate the old tube to simplify removal, and use tire levers to gently loosen one side of the tire from the rim, creating enough space to access the tube. Carefully remove the old tube, checking the tire's interior for any debris or sharp edges that could harm the new tube.

Before placing the new tube, add a small amount of air to give it form, aiding in a smooth installation without pinching. Align the valve with the rim hole, threading it gently to avoid any damage. Position the tube evenly within the tire, ensuring it sits correctly without any kinks or twists. Secure the tire bead back into place, using tire levers if necessary, and confirm the tube is not pinched. Inflate the tire to the correct pressure, ensuring the valve remains straight and properly seated.

Maintenance Tips

Regular maintenance of inner tubes is key to their longevity and performance. Performing weekly pressure checks keeps the ride smooth and prevents excessive wear. Use a dependable gauge to verify air pressure, adjusting as needed to meet the manufacturer's specifications for your tire and tube pairing.

Periodically inspect the valve stem for signs of wear or potential damage, as this area is crucial for air retention. Look out for any bulges or weak spots on the tube, which may indicate areas prone to failure. Store spare tubes in a cool, dry place, away from heat or oils, which can deteriorate the rubber. When rotating tires, remember to include the tubes to ensure even wear and prolong their life.

Troubleshooting Common Issues

Promptly addressing common inner tube issues helps maintain safety and efficiency. If you notice slow leaks, they often stem from minor valve core or rim tape issues; inspect these parts for any flaws or misalignments and correct them to ensure a proper seal. Persistent flats may suggest debris lodged in the tire; thoroughly check the interior for sharp objects that could puncture the tube. Valve problems may result from improper installation angles or damage; verify alignment during installation and inspect for defects. To avoid pinch flats, maintain the recommended tire pressure for your specific usage, minimizing the risk of the tube getting caught between the tire and rim.

Where Can I Buy Inner Tubes and Get Help?

Purchase Options

Securing the right inner tube is easy with numerous purchasing options available. Visit local bike shops to benefit from tailored advice and assistance in choosing the precise tube size and type for your needs. These shops offer a selection of options, ensuring you receive comprehensive guidance on both installation and upkeep.

For those needing quick access to common sizes, auto parts stores stock an array of inner tubes suitable for motorcycles, lawn equipment, and utility vehicles. Their inventory caters to standard requirements, making them a convenient choice for immediate replacements. If you seek a broader selection, online retailers present extensive catalogs, enabling easy comparison of different brands and specifications. This is particularly advantageous for acquiring unique or less common tube sizes that may not be readily found in physical stores.

Getting Expert Assistance

Professional help can be crucial for inner tube installation and maintenance. Many bike shops offer services that ensure your inner tubes are correctly fitted and inspected for any issues that might affect their durability, such as tire wear or rim damage.

Mobile repair services provide on-location solutions for punctures and other problems, delivering expertise directly to your doorstep and saving you time. Additionally, online resources like sizing guides and calculators offer a straightforward way to confirm the right fit for your setup, enhancing compatibility and performance.

Emergency Preparedness

Being prepared for unexpected flats can prevent minor issues from becoming major disruptions. Carry a patch kit to enable quick and effective repairs on the go. Having a spare tube on hand ensures you're ready for immediate replacement when necessary, reducing downtime. Familiarize yourself with basic repair techniques to boost your confidence in managing common tube issues. Equipping yourself with a portable pump or CO2 inflator means you can swiftly restore tire pressure, maintaining a safe and comfortable ride. This readiness not only provides peace of mind but also prolongs the life and efficiency of your inner tubes.

Understanding inner tubes helps you make informed decisions about maintaining and replacing these essential components for your bikes, motorcycles, and equipment. Whether you need tubes for recreational activities or everyday transportation, having the right knowledge ensures you select products that match your specific requirements and riding conditions.
